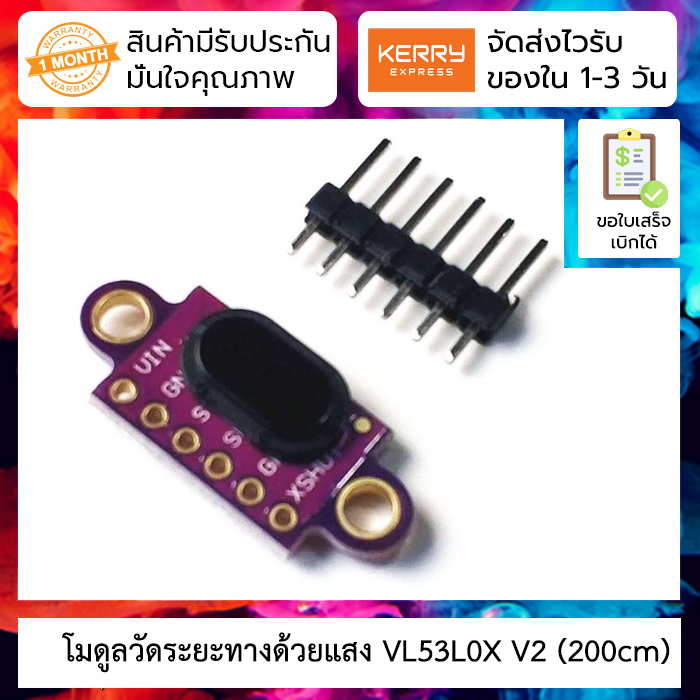

VL53L0X World’s smallest Time-of-Flight ranging and gesture detection sensor



ตัวอย่างการต่อใช้งาน VL53L0X กับ Arduino








วิธีกรองสัญญาณรบกวนที่เกิดใน VL53L0X ด้วย Arduino และ ไลบรารี่ MedianFilter





การต่อเซนเซอร์หลายตัวด้วยวิธีเปลี่ยน i2c address




Features
• Fully integrated miniature module
– 940 nm laser VCSEL
– VCSEL driver
– Ranging sensor with advanced embedded
micro controller
– 4.4 x 2.4 x 1.0 mm
• Fast, accurate distance ranging
– Measures absolute range up to 2 m
– Reported range is independent of the
target reflectance
– Advanced embedded optical cross-talk
compensation to simplify cover glass
selection
• Eye safe
– Class 1 laser device compliant with latest
standard IEC 60825-1:2014 - 3rd edition
• Easy integration
– Single reflowable component
– No additional optics
– Single power supply
– I2C interface for device control and data
transfer
– Xshutdown (reset) and interrupt GPIO
– Programmable I2C address

Applications
• User detection for personal computers/
laptops/tablets and IoT (energy saving)
• Robotics (obstacle detection)
• White goods (hand detection in automatic
faucets, soap dispensers etc.)
• 1D gesture recognition.
• Laser assisted autofocus. Enhances and
speeds up camera autofocus system
performance, especially in difficult scenes (low
light levels, low contrast) or fast moving video
mode.

Description
The VL53L0X is a new generation Time-of-Flight
(ToF) laser-ranging module housed in the
smallest package on the market today, providing
accurate distance measurement whatever the
target reflectances unlike conventional
technologies. It can measure absolute distances
up to 2m, setting a new benchmark in ranging
performance levels, opening the door to various
new applications.
The VL53L0X integrates a leading-edge SPAD
array (Single Photon Avalanche Diodes) and
embeds ST’s second generation FlightSenseTM
patented technology.
The VL53L0X’s 940 nm VCSEL emitter (Vertical
Cavity Surface-Emitting Laser), is totally invisible
to the human eye, coupled with internal physical
infrared filters, it enables longer ranging
distances, higher immunity to ambient light, and
better robustness to cover glass optical crosstalk




Optical cover sheet Description:

The optical cover sheet supporting VL53L0X V2 is used to measure more accurately, and it also protects the sensor and prolongs the service life of the sensor. Can be selected by yourself.
