Item description

รายละเอียดสินค้า

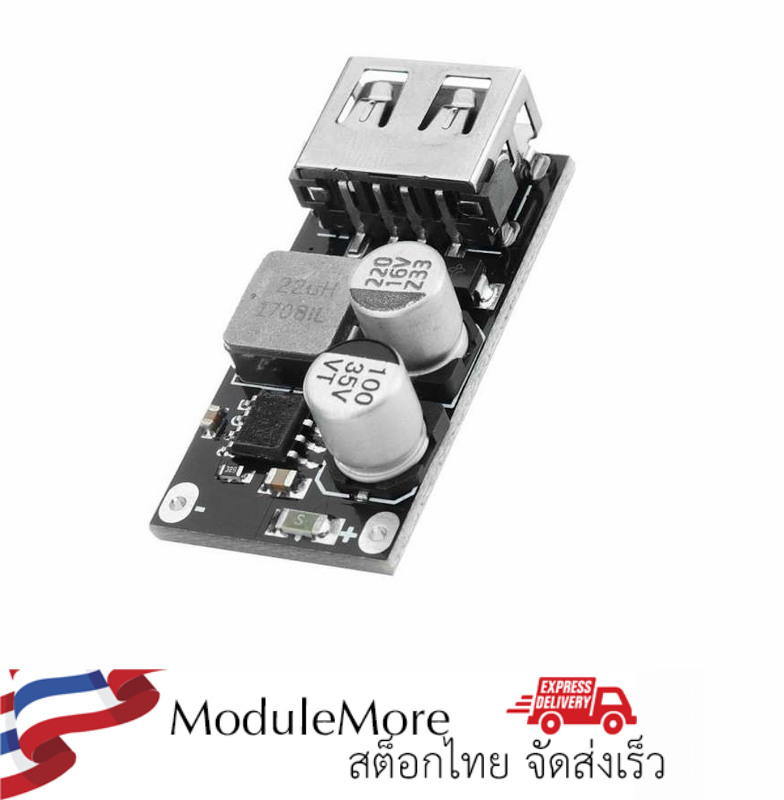

Input voltage range: 6V-32V
Output voltage: default 5V, automatically adjust between 3-12V after triggering fast charge.
Output power: maximum 24W (5V@3.4A, 9V@2.5A, 12V@2A, etc.)
Wired function of output voltage
Conversion efficiency: 90%-97%
Support a variety of fast filling protocols
Overvoltage and undervoltage protection
Input over current protection
Output overcurrent and short circuit protection
Over temperature protection for the whole machine
Support: BC1.2, QC2.0, QC3.0, MTK PE + 1.1, MTK PE + 2.0, FCP, AFC, SFCP
Product Size: 34*17*9.5mm (Excluding 1mm of USB female seat protrusion)
