Item description |
Product parameters:

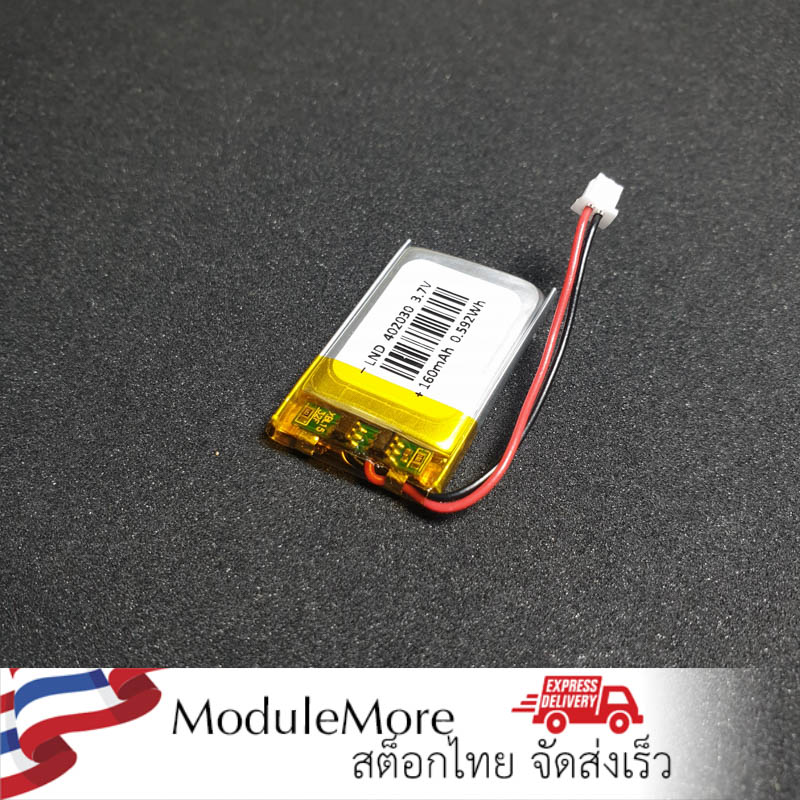

Battery model: 402030
Nominal voltage: 3.7V
Design capacity: 160mAh
Minimum capacity: 160mAh
Charging current: standard charging: 0.2C (32mA) ; fast charging: 1.0C (160mA)
Continuous discharge current: 0.5C
Maximum discharge current: 1C
Discharge cut-off voltage: 2.75V±0.05V
Working temperature: -10℃~+45℃
Storage temperature: -20℃~+45℃
Charging time: 8hrs (standard); 2.5hrs (fast)
Charge and discharge times: more than 500 times
Application areas:
Portable devices: POS machines, handheld computers, portable printers, handheld data terminals
Medical equipment: ECG monitoring equipment, B-ultrasound, ventilator
Industrial instruments: flaw detectors, optical fiber fusion splicers, optical power meters
Consumer electronics: PDA, MID power tools, electric bicycles, emergency light power supplies, etc.

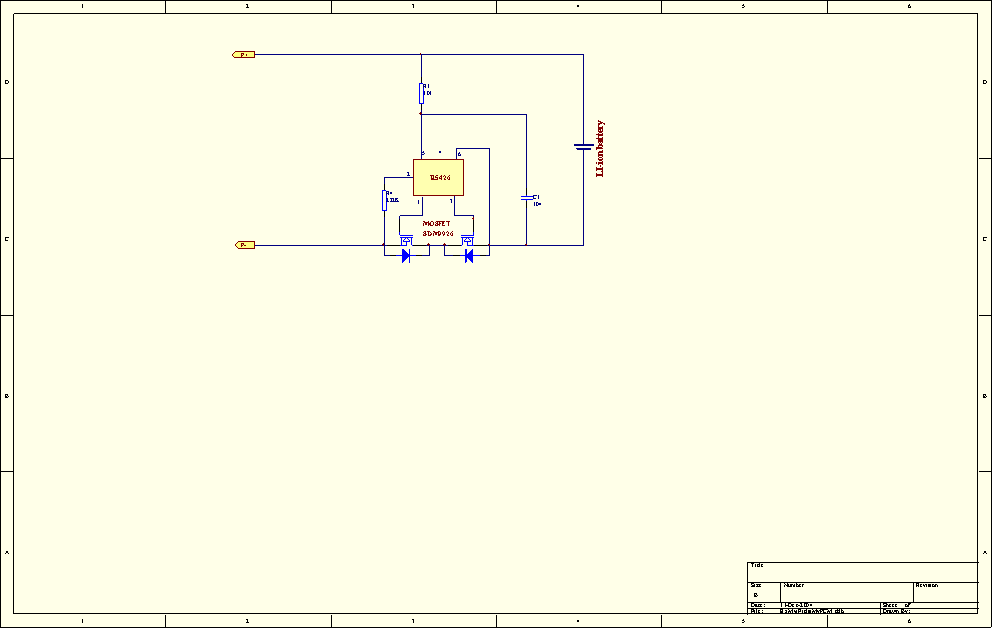

Protection circuit
1 Overcharge protection voltage 4.30V±0.05V
2 Over-discharge protection voltage 2.75V±0.1V
3 Overcurrent protection 2.75±1.0A 2.75V~4.3V
4 Output short circuit protection voltage -1.2V~ -0.9V BASE ON VDD
5 Overcharge protection detection delay time 1.2S (Typical)
6 Over-discharge protection detection delay time 144mS (Typical)
7 Overcurrent protection detection delay time 10mS (Typical)
8 Output short circuit protection detection delay time 50uS (Typical)
9 Normal working internal resistance ≦75mΩ
10 Current consumption 7.0uA (Max)
11 Working temperature -40~85℃
Note: The test conditions in the above specification are:
Temperature: 20±5℃, relative humidity: 45%--75%,
Atmospheric pressure: 86KPa-106KPa.
![]() ![]() ![]() |
