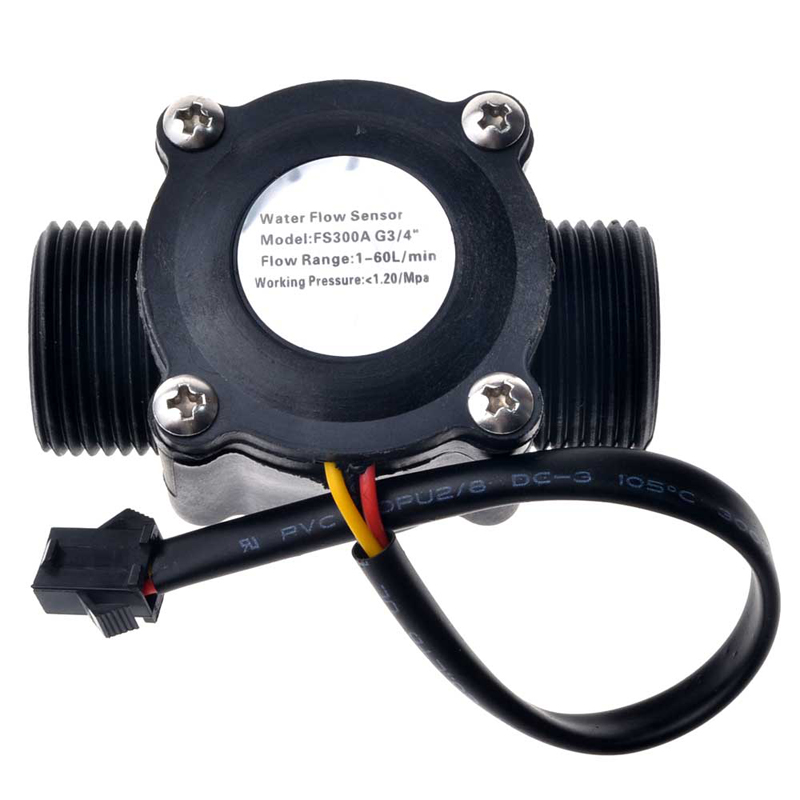

A G3/4" water flow sensor for providing more chooice of water flow sensors. Water flow sensor consists of magnetic core, rotating impeller, external casing and sensor and a hall-effect sensor. When water flows through the rotor, rotor rolls, it activates the magnetic core to trigger switch action speed changes with different rate of flow. The hall-effect sensor outputs the corresponding pulse signals, users can get the flow speed via detecting the pulse. It is suitable to detect flow in water dispenser or coffee machine. There are also lots of other water flow sensors in other diameters for your choice.
The water flow sensor outputs pulse proportional to the water flow with: Pulse Frequency = Flow* 5.5.That is, if the output frequency is 48, then the water flow: 48/5.5= 8.72(L/min) Connect the water flow sensor to microcontroller as belows:
Specification
Mini. Wokring Voltage: DC 4.5V
Max. Working Current: 15mA (DC 5V)
Working Voltage: DC 5V~24V
Flow Rate Range: 1~60L/min
Load Capacity: ≤10mA (DC 5V)
Operating Temperature: ≤80℃
Liquid Temperature: ≤120℃
Operating Humidity: 35%～90%RH
Water Pressure: ≤2.0MPa
Storage Temperature: -25～+ 80℃
Storage Humidity: 25%～95%RH
Datasheet https://www.openhacks.com/uploadsproductos/g3_4_water_flow_sensor_-_wiki.pdf
Pin Out
RED – Power Input
BLACK – Ground
YELLOW – PWM Output Signal

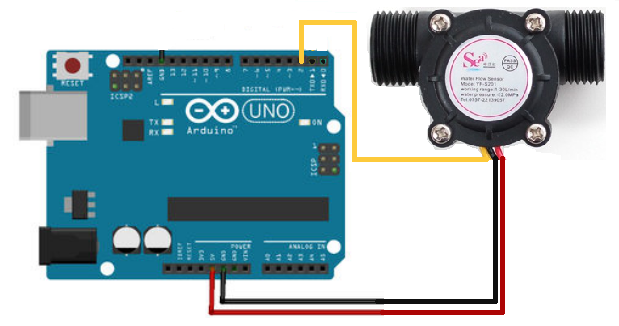

ตัวอย่างการต่อกับ Arduino Uno  ตัวอย่าง Code volatile int NbTopsFan; //measuring the rising edges of the signal int Calc; int hallsensor = 2; //The pin location of the sensor void rpm () //This is the function that the interupt calls { NbTopsFan++; //This function measures the rising and falling edge of the hall effect sensors signal } // The setup() method runs once, when the sketch starts void setup() // { pinMode(hallsensor, INPUT); //initializes digital pin 2 as an input Serial.begin(9600); //This is the setup function where the serial port is initialised, attachInterrupt(0, rpm, RISING); //and the interrupt is attached } // the loop() method runs over and over again, // as long as the Arduino has power void loop () { NbTopsFan = 0; //Set NbTops to 0 ready for calculations sei(); //Enables interrupts delay (1000); //Wait 1 second cli(); //Disable interrupts Calc = (NbTopsFan * 60 / 7.5); //(Pulse frequency x 60) / 7.5Q, = flow rate in L / hour Serial.print (Calc, DEC); //Prints the number calculated above Serial.print (" L/hour\r\n"); //Prints "L/hour" and returns a new line }    |
