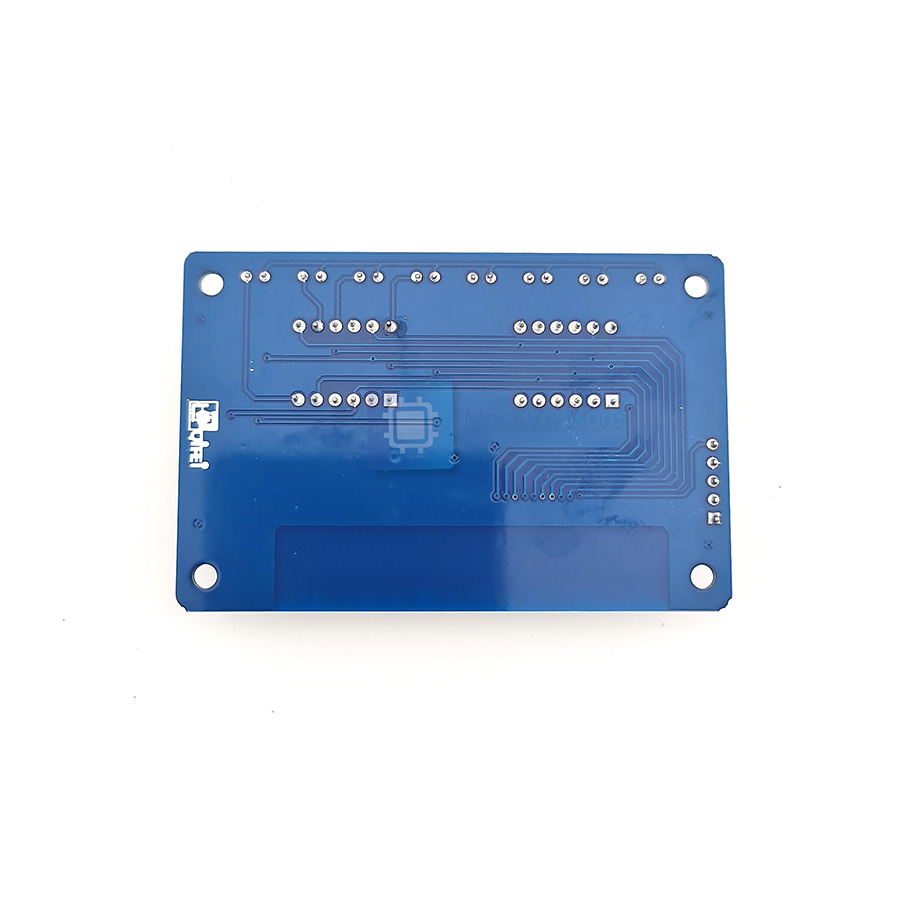

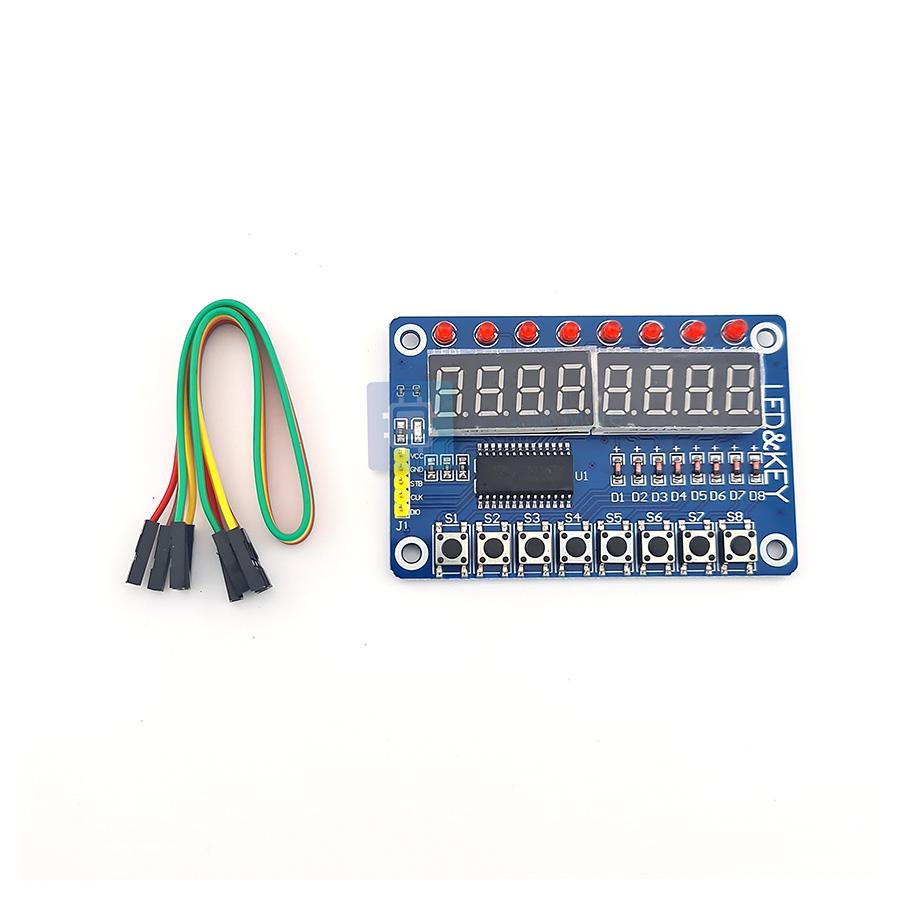

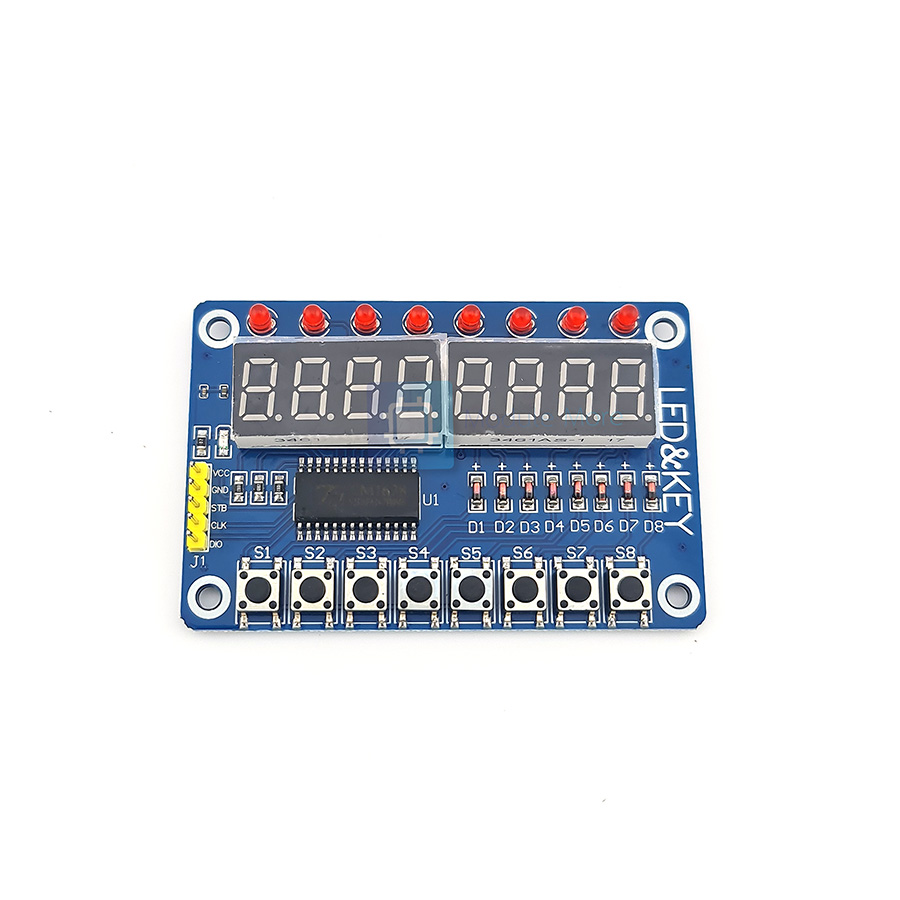

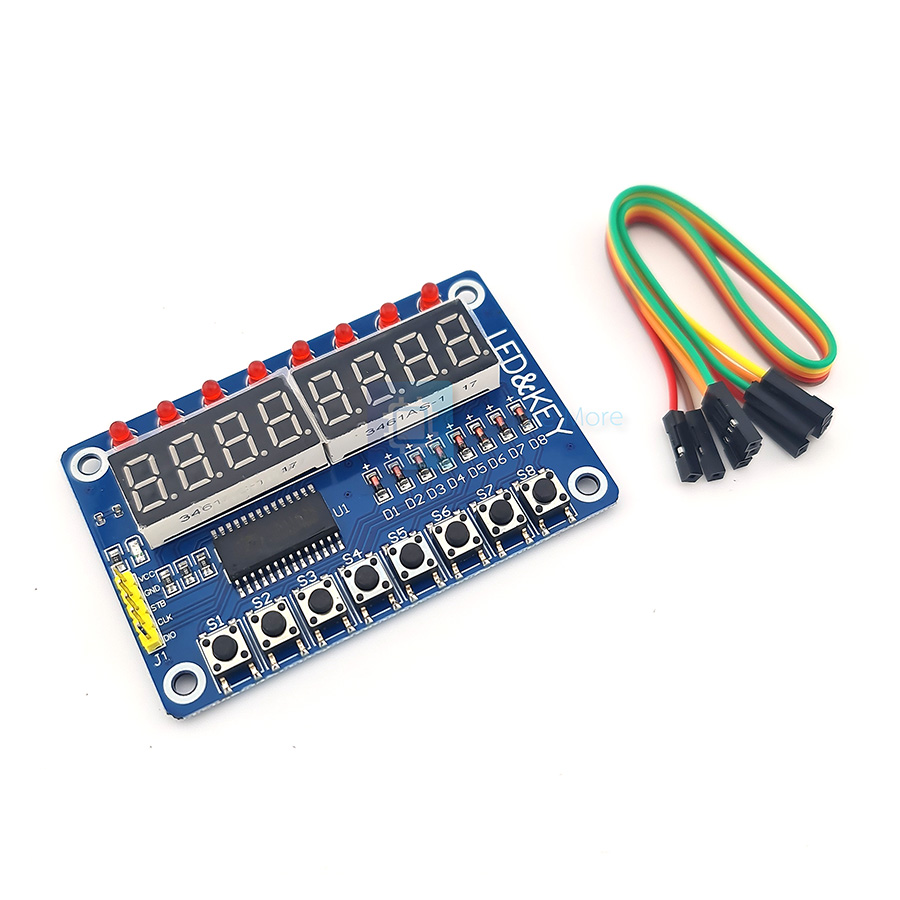

โมดูลตัวเลข 8 หลัก พร้อมปุ่มและไฟ LED TM1638 button digital tube LED display module (8-digit digital tube\LED\button)

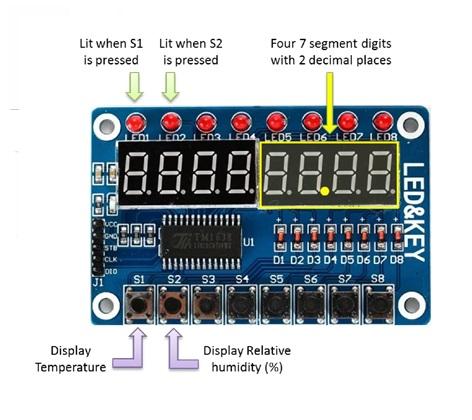

ตัวอย่างการแสดงผล การใช้งาน



ตัวอย่างการต่อ TM1638 กับ Arduino UNO r3
Arduino TM1638 based board
3.3V ------------------ VCC
GND ------------------ GND
PIN #7 ------------------ STB
PIN #8 ------------------ DIO
PIN #9 ------------------ CLK

ตัวอย่างโค้ด TM1638

https://github.com/moozzyk/TM1638


TM1638 8-Bit Button LED Segment Digital Module
This product is a 7-segment displays with 8-bit 8-digit, 8 buttons and 8 LEDs. It has 3-pin control, power and ground pin. Control pins are for strobe clock and date. Strobe and clock pins are output pins and pin data can be used for both output and input.
Strobe pin is used when you need to reference data plate, strobe pin is on LOW setting before you start sending data, one or more bits, and when sending over, strobe pin is set to HIGH. There is only one pin time, so the information can be sent bit by bit. Clock pin is used to reference every bit. Set the clock pin LOW, it sends a bit, then set the clock pin HIGH.

Features/Specs
Chip: TM1638
Power supply: 12V DC
Current: 0.24
Display: 7-segment 8-bit
Oscillator: RC (450KHz + 5%)
Serial interface: CLK, STB, DIO
Note: Product Images are shown for illustrative purposes only and may differ from actual product
