Overview

Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualisation interface between a human and a process, machine, application or appliance. Nextion is mainly applied to IoT or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube. With the Nextion Editor software (Official Download), users are able to create and design their own interfaces for Nextion display.

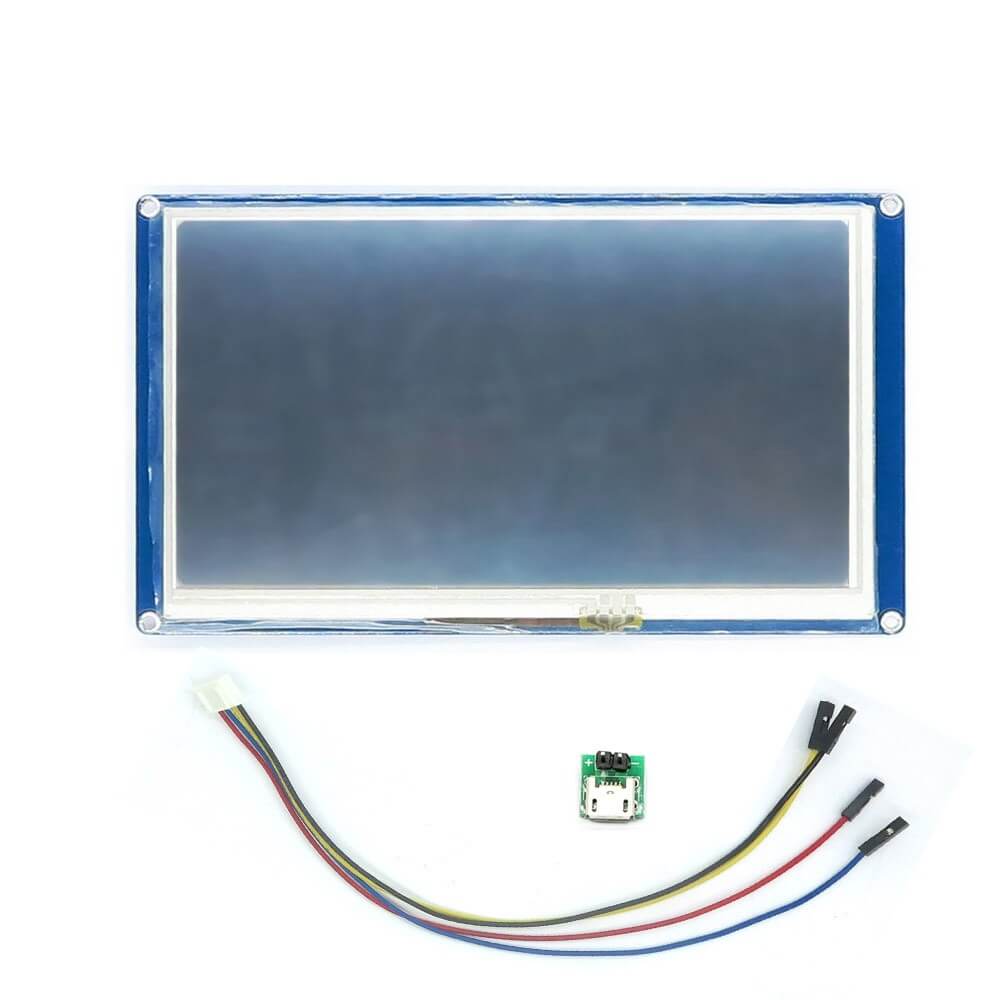

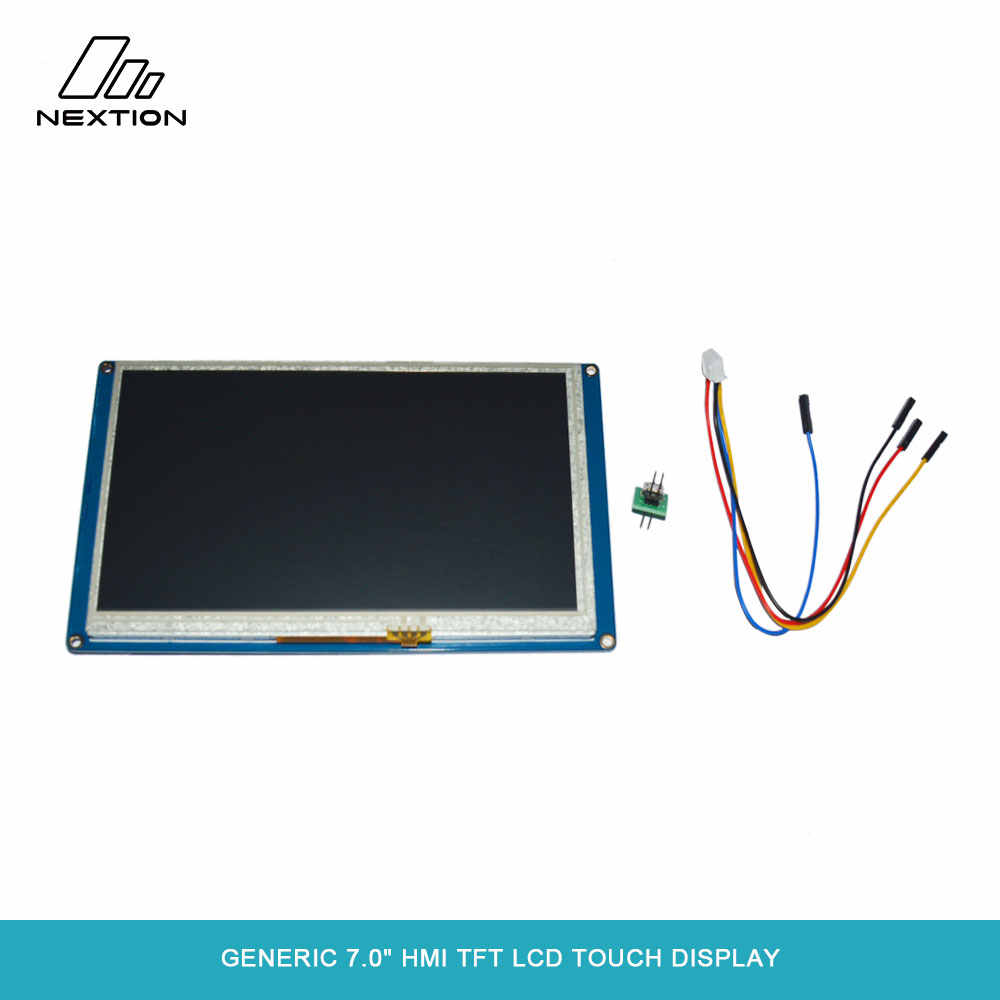

Package includes: Nextion Display, connecting wire, a power supply test board.
Go Shopping: NX8048T070 (IM150416007)
Note: the small power supply test board and connecting wire inside the package allow you to test if the electrical supply is enough or not. See the image below on how to use it.








Specifications

  Data Description
Color 64K 65536 colors 16 bit 565, 5R-6G-5B
Layout size 181(L)×108(W)×7.3(H) NX8048T070_011N
181(L)×108(W)×9(H) NX8048T070_011R
Active Area (A.A.) 164.9mm(L)×100mm(W)
Visual Area (V.A.) 154.08mm(L)×85.92mm(W)
Resolution 800×480 pixel Also can be set as 480×800
Touch type Resistive
Touches > 1 million
Backlight LED
Backlight lifetime (Average) >30,000 Hours
Brightness  250nit (NX8048T070_011N) 0% to 100%, the interval of adjustment is 1%
230 nit (NX8048T070_011R) 0% to 100%, the interval of adjustment is 1%
Weight 216g (NX8048T070_011N)
268g (NX8048T070_011R)

Electronic Characteristics

  Test Conditions Min Typical Max Unit
Operating Voltage   4.75 5 7 V
Operating Current VCC=+5V, Brightness is 100% 510 mA
SLEEP Mode 15 mA
Power supply recommend:5V, 2A, DC

Working Environment & Reliability Parameter

  Test Conditions Min Typical Max Unit
Working Temperature 5V, Humidity 60% -20 25 70 °C
Storage Temperature   -30 25 85 °C
Working Humidity 25°C 10% 60% 90% RH

Interfaces Performance

  Test Conditions Min Typical Max Unit
Serial Port Baudrate Standard 2400 9600 115200 bps
Output High Voltage IOH=-1mA 3.0 3.2   V
Output Low Voltage IOL=1mA   0.1 0.2 V
Input High Voltage   2.0 3.3 5.0 V
Input Low Voltage   -0.7 0.0 1.3 V
Serial Port Mode TTL
Serial Port 4Pin_2.54mm
USB interface NO
SD card socket Yes (FAT32 format), support maximum 32G Micro SD Card
* microSD card socket is exclusively used to upgrade Nextion firmware /HMI design

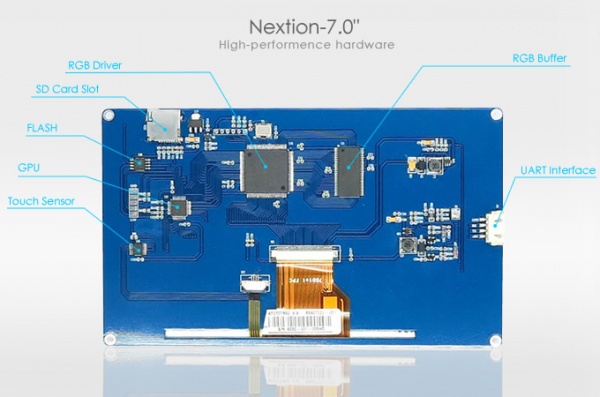

Memory Features

Memory Type Test Conditions Min Typical Max Unit
FLASH Memory Store fonts and images     16 MB
RAM Memory Store variables     3584 BYTE

Product Dimensions

7.0”_Nextion_Dimension
