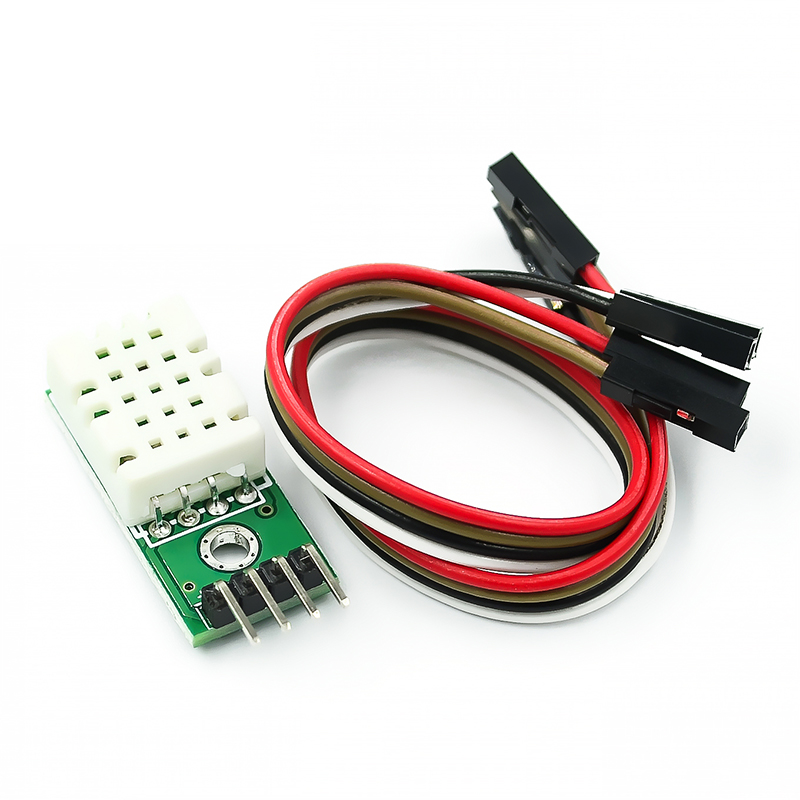

โมดูลวัดอุณหภูมิและความชื้น SHTC3 high-precision digital temperature and humidity sensor measurement module I2C communication is better than AM2302 DHT22

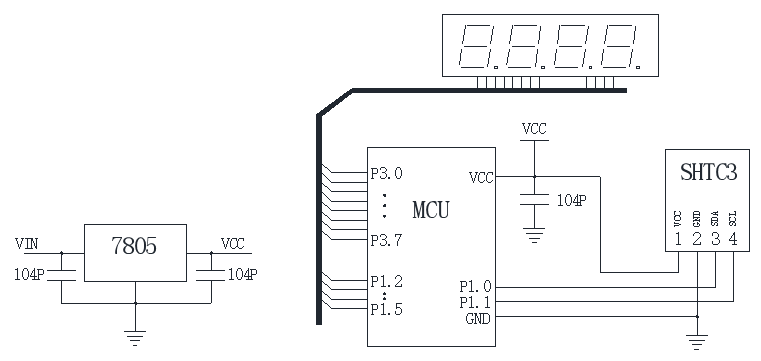

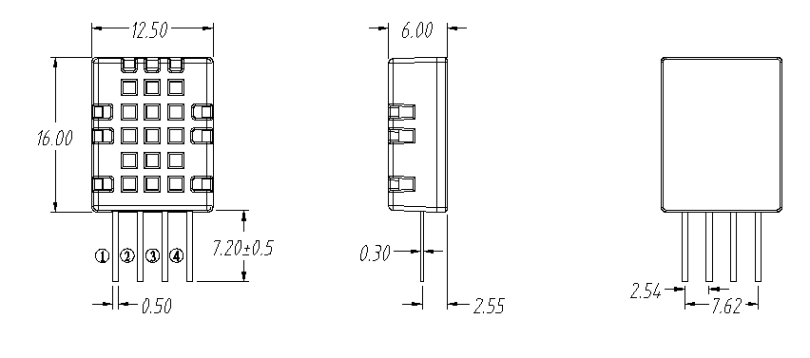

สามารถวัดอุณหภูมิและความชื้นโดยใช้สายข้อมูล 2 เส้น (I2C) มีไลบรารี่ให้สำหรับ Arduino / ESP32 / ESP8266 ความแม่นยำสามารถดูได้จากด้านล่าง Datasheet https://www.mediafire.com/file/41peoxfsehjs8mb/SENSOR-Sensirion-SHTC3.pdf/file Dimensions ![]() Schematic diagram
![]() Pin description
1. VDD power supply 3.3~5.5V DC
2. GND ground, negative power supply
3. SDA serial data, bidirectional port
4. SCL serial clock, input port
Technical Parameters:
1. Humidity measurement range: 0~100%RH
2. Humidity measurement accuracy: ±2%RH
3. Temperature measurement range: -40~125℃
4. Temperature measurement accuracy: ±0.2℃
5. Working voltage: 3.3~5VDC
6. I2C interface output
Applications:
HVAC, dehumidifier, agriculture, cold chain warehousing, testing and inspection equipment, consumer products, automobiles, automatic control, data loggers, weather stations, home appliances, humidity regulators, medical, and other related humidity detection and control. ![]() ![]() ![]() ![]() |
