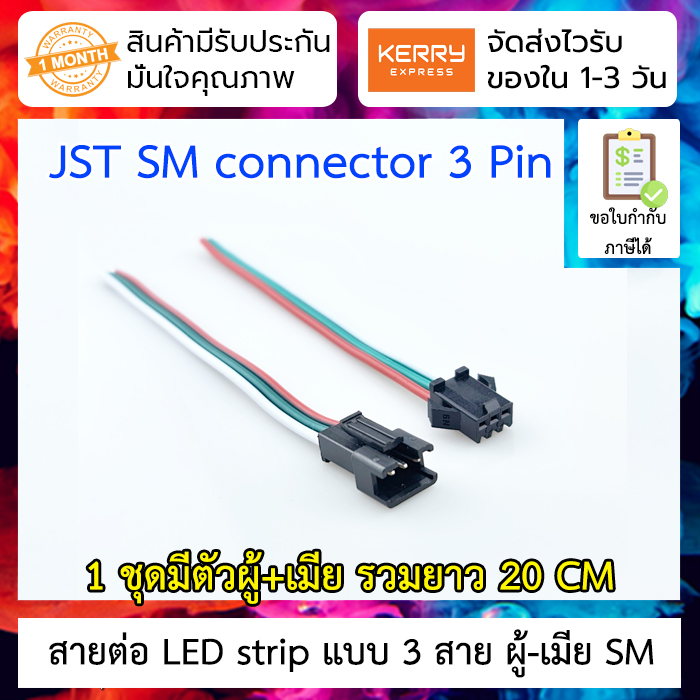

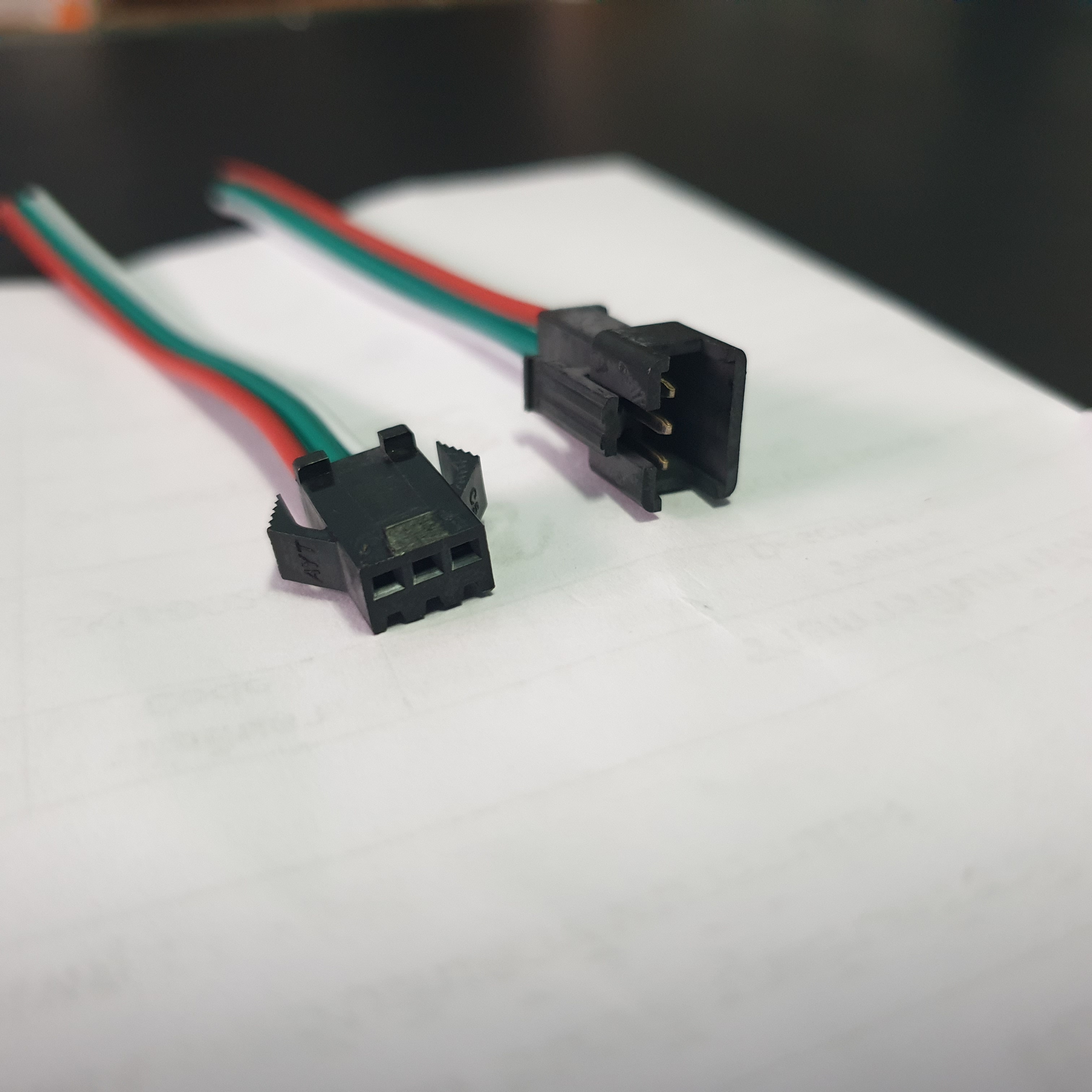

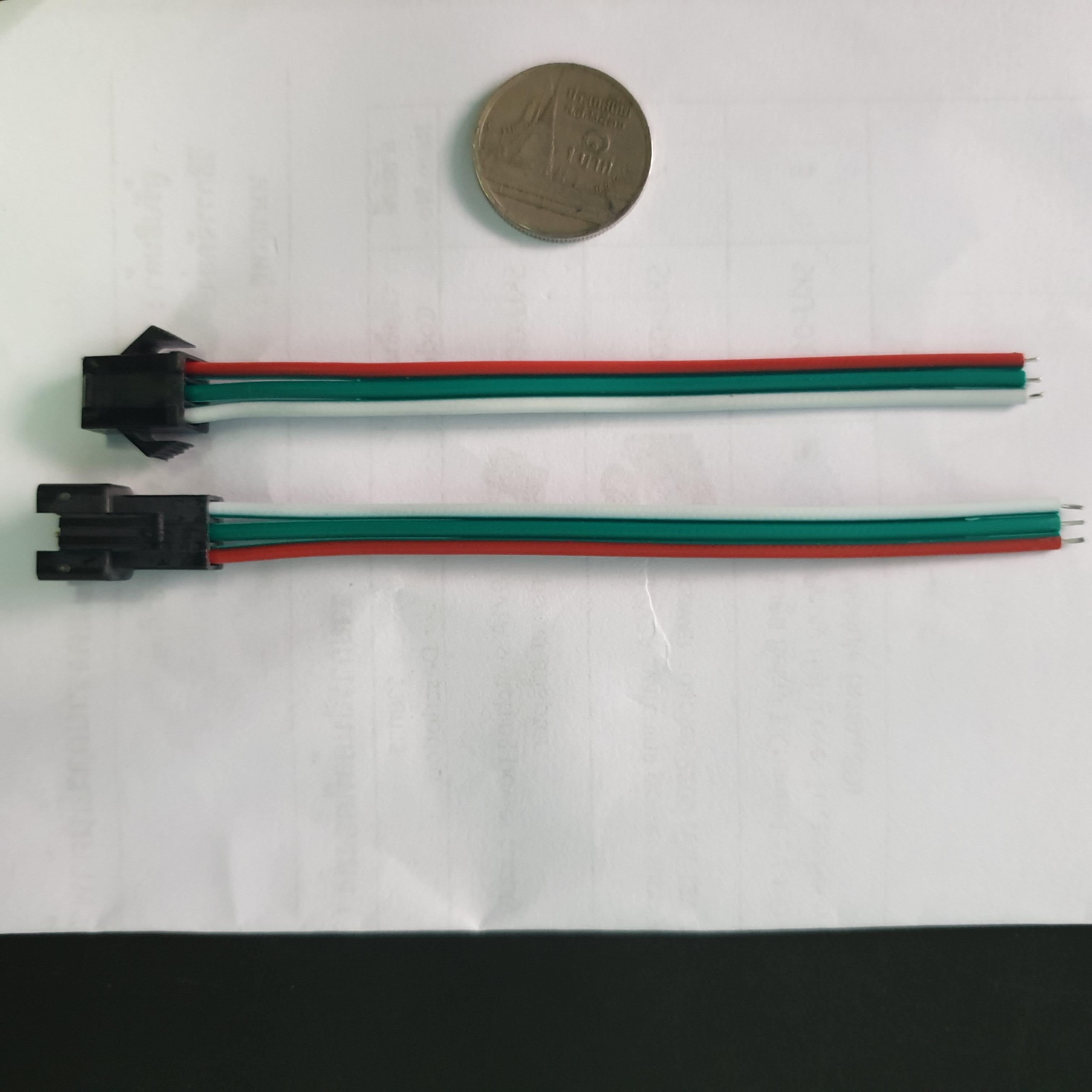

สาย JST SM Connector 3 pin สำหรับ LED strip ผู้-เมีย ยาว 20cm WS2811/2812B/1903 connector

Specification:
Series: SM Connector
Pitch ::2.54mm
Position: 2pin 3pin 4pin
Applicable:22 AWG
Wire length :100mm, 150mm, 200mm (Approx. )
End of wire material :solder bare wire
Voltage rating :250V DC/AC
Current rating :3.0A DC/AC
Temperature :-25 to +85°C
Withstand voltage :500 VAC/minute (effective value)
Insulation resistance: ≥1500M Ω
Contact resistance:≤0.02 Ω
Applicable panel thickness : 0.5 to 2.0mm


Feature:
Durable and practical. Long serving time.
Application :wire to wire connectors.
