Item description |
ใช้คู่กับบอร์ดขับสเตปเปอร์
ตัวอย่าง Stepping motor ที่ใช้งานได้

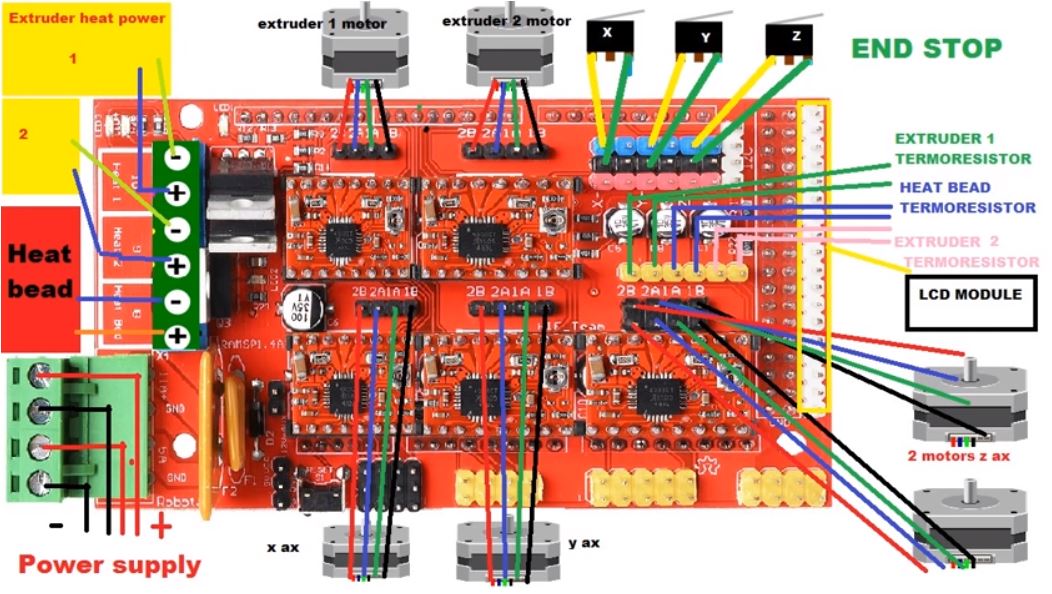

ตัวอย่างวิธีการใช้งาน Ramps 1.4 กับ Arduino MEGA และ Stepper motor ข้อควรระวังในการใช้ RAMPS 1.4 Features
It has provisions for the cartesian robot and extruder.
Expandable to control other accessories.
3 mosfets for heater / fan outputs and 3 thermistor circuits.
Fused at 5A for additional safety and component protection
Heated bed control with additional 11A fuse
Fits 5 Pololu stepper driver board
Pololu boards are on pin header sockets so they can be replaced easily or removed for use in future designs.
I2C and SPI pins left available for future expansion.
All the Mosfets are hooked into PWM pins for versatility.
Servo style connectors are used to connect to the endstops, motors, and leds. These connectors are gold plated, rated for 3A, very compact, and globally available.
USB type B receptacle
SD Card add on available -- Available now made by Kliment - Sdramps
LEDs indicate when heater outputs on
Option to connect 2 motors to Z for Prusa Mendel
Package List
1 X Geeetech Ramps1.4 Board ![]() ![]() ![]() |
|||
