Item description

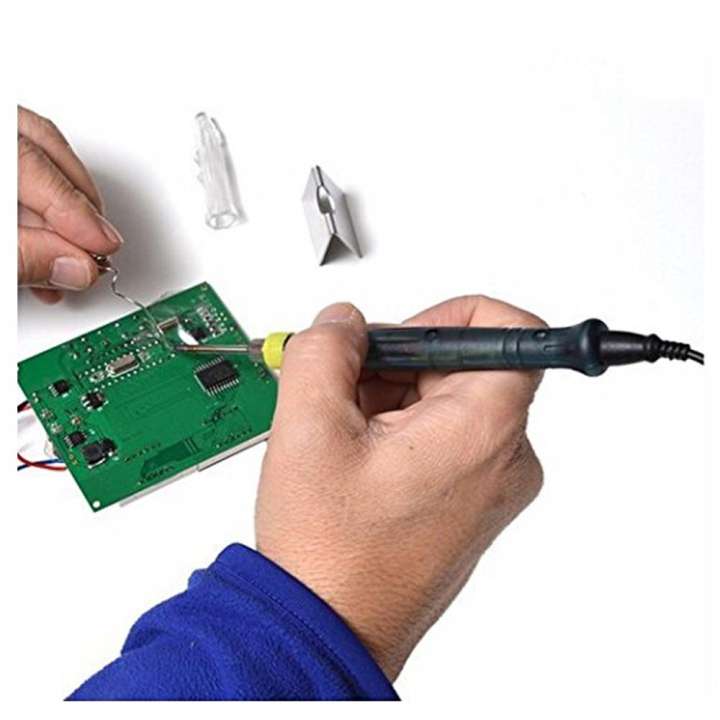

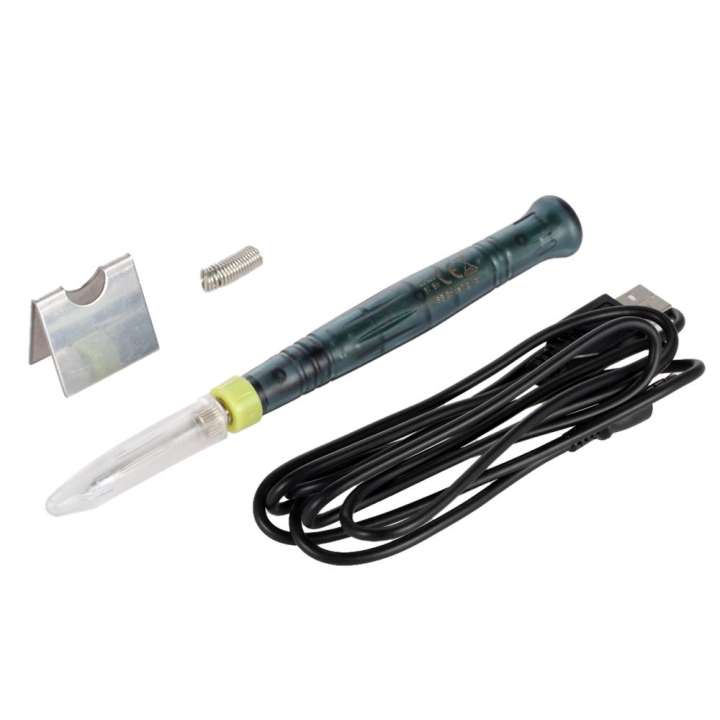

Do you need a efficient soldering iron? This USB electric soldering iron is exactly what you are looking for. It heats up in less than 15 seconds, the tip is thin, which makes soldering jobs easily.

Features:

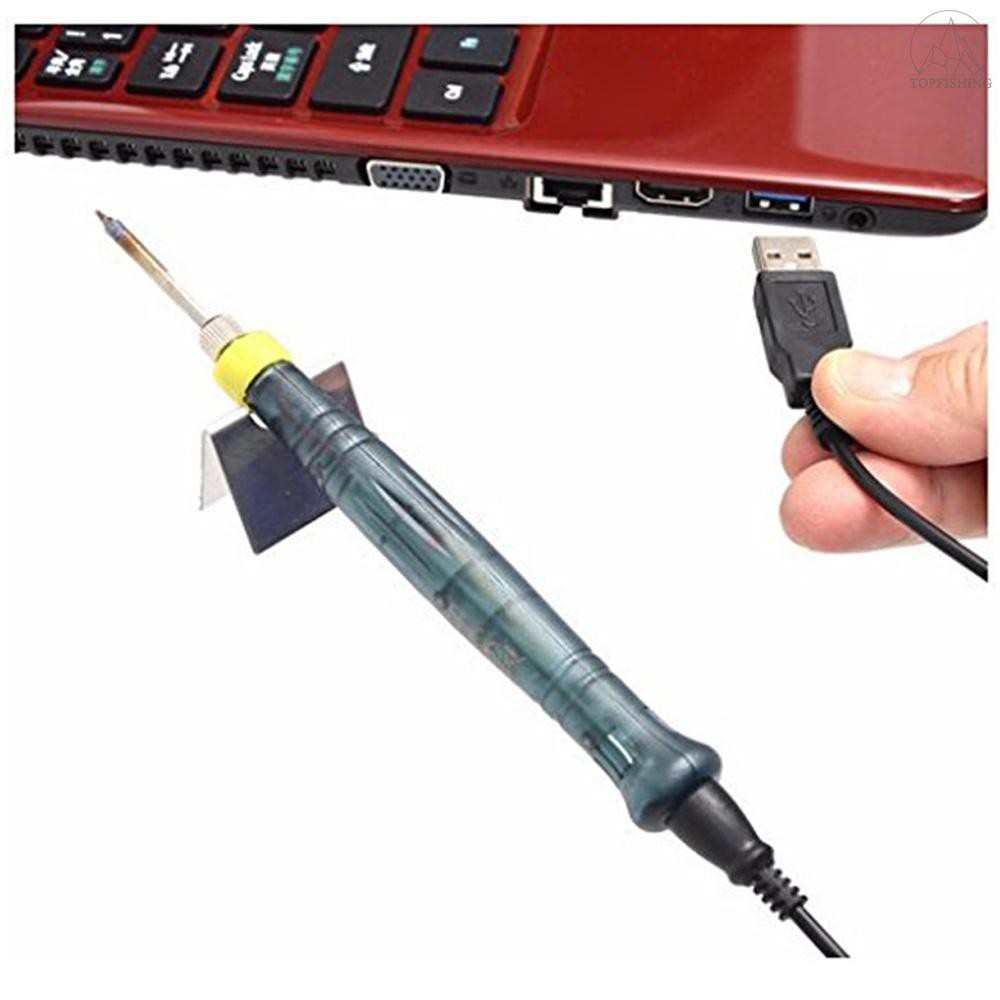

  • Mini and portable USB soldering iron, very easy to operate.
  • Pencil tip type, which is thin and small, very perfect for your soldering needs.
  • Heating up in less than 15 seconds.
  • Cooling down in less than 30 seconds.
  • Long life tip with a protective cap.
  • Fully functioning USB powered soldering iron.
  • Small and compact for portability.

Note:
Touch the metal point again to re-start work.
♦Sightly touching the metal point on the body of the soldering pen,then the LED light will be lightened up and jop can be started.
♦If leaving the item unused for 25 seconds,the LED light will be turned off and the pen will get into sleeping mode automatically.

CAUTION:
1.Handle the heated soldering iron with extreme care, as the high temperature of the iron can cause fires or painful burms.
2.The fist time you use the soldering iron, it may smoke sightly as the heating element dries out. This is normal and should only last for approx.10 minutes.
3.Never file the specially-plated tip.
4.Don't rotate when removing the welding head cap! You can unplug directly, otherwise, the loose welding head won't hot!

Specifications:
  • Color: Light Grey
  • Material: PVC
  • Input: USB 5V
  • Power: 8W
  • Highest Heating Temperature: 480�C (896�F)
  • Heating Time: <15 seconds
  • Cooling Time: <30 seconds
  • Auto Shut Off: 25 second idle
  • LED Indicator: Yes
  • Soldering Iron Length: Approx. 16.2cm / 6.38in
  • Cable Length: Approx. 150cm / 59.06in
  • Item Weight: Approx. 18.9g / 0.7oz
  • Package Size: Approx. 21 * 7 * 2cm / 8.3 * 2.7 * 0.8in
  • Package Weight: Approx. 95g / 3.3oz
