Item description |
รายละเอียดสินค้า
เซนเซอร์ตรวจจับท่าทาง ใช้ไฟเลี้ยง 2.8-3.3V สามารถตรวจจับท่าทางเช่นการโบกมือได้ดังนี้ เลื่อนขึ้น
เลื่อนลง
เลื่อนซ้าย
เลื่อนขวา
เลื่อนไปข้างหน้า
เลื่อนไปข้างหลัง
วงกลมตามเข็มนาฬิกา
วงกลมทวนเข็มนาฬิกา
เป็นคลื่น
ซึ่งจะส่ง Input นี้ไปยัง Arduino ตัวอย่างการใช้งาน รายละเอียดเพิ่มเติม

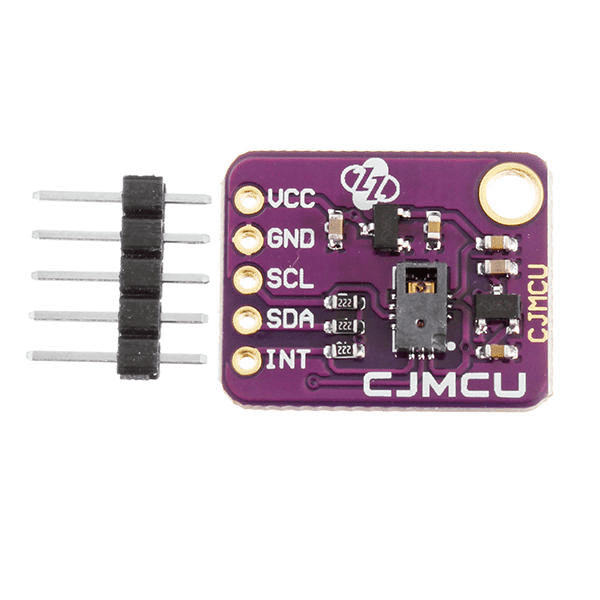

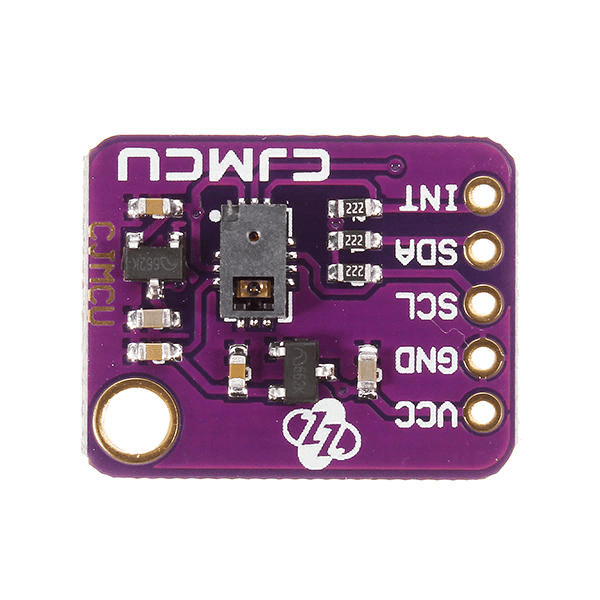

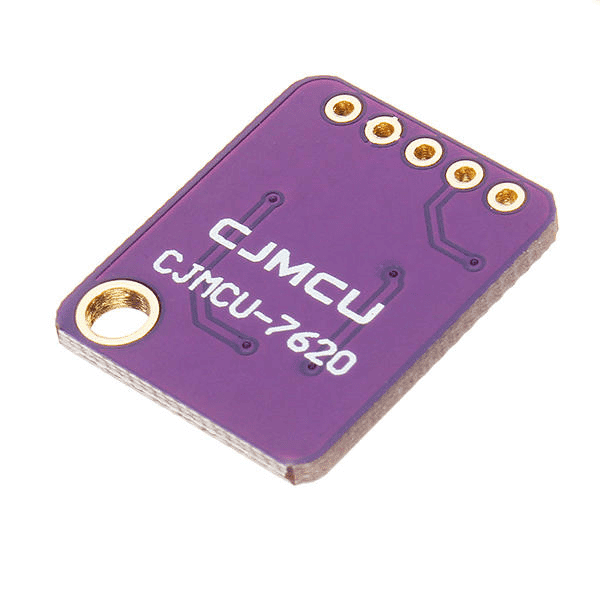

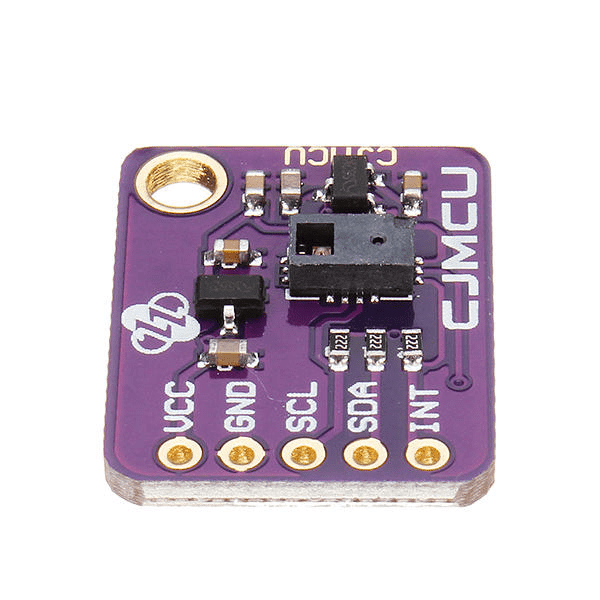

PAJ7620U2 integrates gesture recognition function with general I2C interface into a single chip. It can recognize 9 gestures including move up, move down, move left, move right, move forward, move backward, circle-clockwise, circle-counter clockwise, and wave. These gestures information can be simply accessed viathe I2C bus. The PAJ7620U2 also offers built-in proximity detection for the purpose of sensing object approaching or departing. The PAJ7620U2 is designed with great flexibility in power-saving mechanism. The PAJ7620U2 is designed to operate from 2.8V to 3.3V over -40°C to +85°C and the pull-up voltage for the I2C bus and interrupt line is from 1.8V to 3.3V.
Feature
• Typical supply voltage is 2.8V to 3.3V and I/O voltage is 1.8V~3.3V
• Nine gesture recognition (Up / Down / Left / Right / Push / Pull / CW / CCW / Wave)
• Gesture speed is 60°/s to 600°/s in Normal Mode and 60°/s to 1200°/s in Gaming Mode
• Ambient light immunity: < 100k Lux
• Built-in proximity detection
• Flexible power saving scheme
• I2C interface up to 400 kbit/s, Pull-up voltage from 1.8V to 3.3V
• Ambient light noise cancellation ![]() ![]() ![]() ![]() ![]() |
