กรอบใส่ PIR sensor HC-SR501 PIR sensor acyric bracket (ไม่รวมเซนเซอร์)

DESCRIPTION

The HC-SR501 PIR Motion Sensor Mounting Bracket is an acrylic bracket for mounting the HC-SR501 PIR Motion Sensor Module.

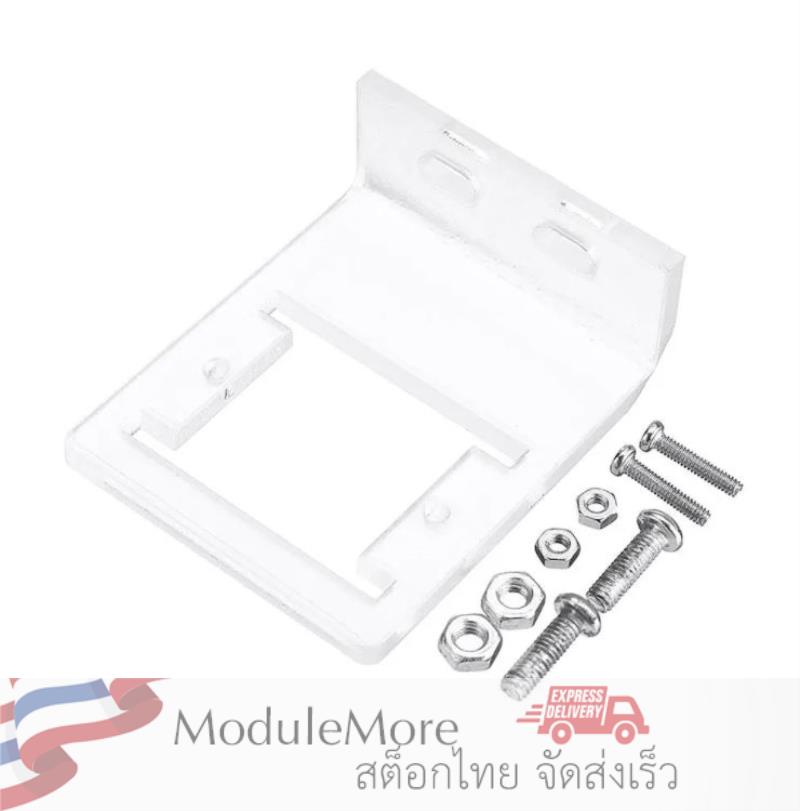

PACKAGE INCLUDES:

  • HC-SR501 PIR Motion Sensor Mounting Bracket
  • 2 small screws & nuts for mounting the sensor to the mount
  • 2 large screws & nuts for attaching the mount to a surface.

KEY FEATURES OF HC-SR501 MOTION SENSOR MOUNTING BRACKET:

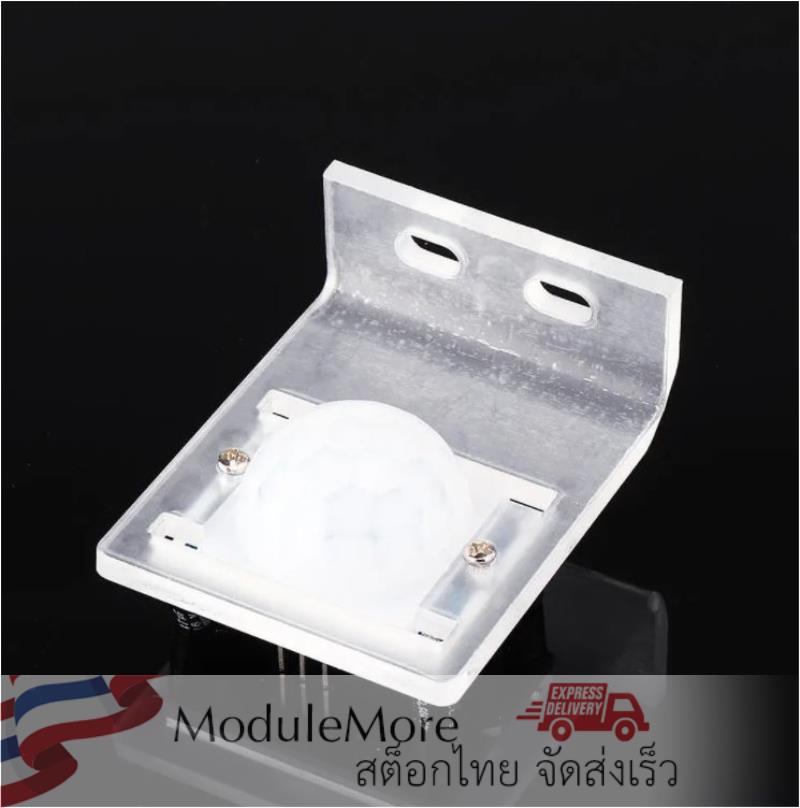

The bracket has two small holes in the top for mounting the sensor to the bracket.  Two small screws and nuts are provided for attaching the sensor to the bracket.

The flange has two larger holes for mounting the bracket to a surface. Two larger screws and nuts are provided for attaching the sensor to the bracket or other hardware can be used depending on the mounting requirement.

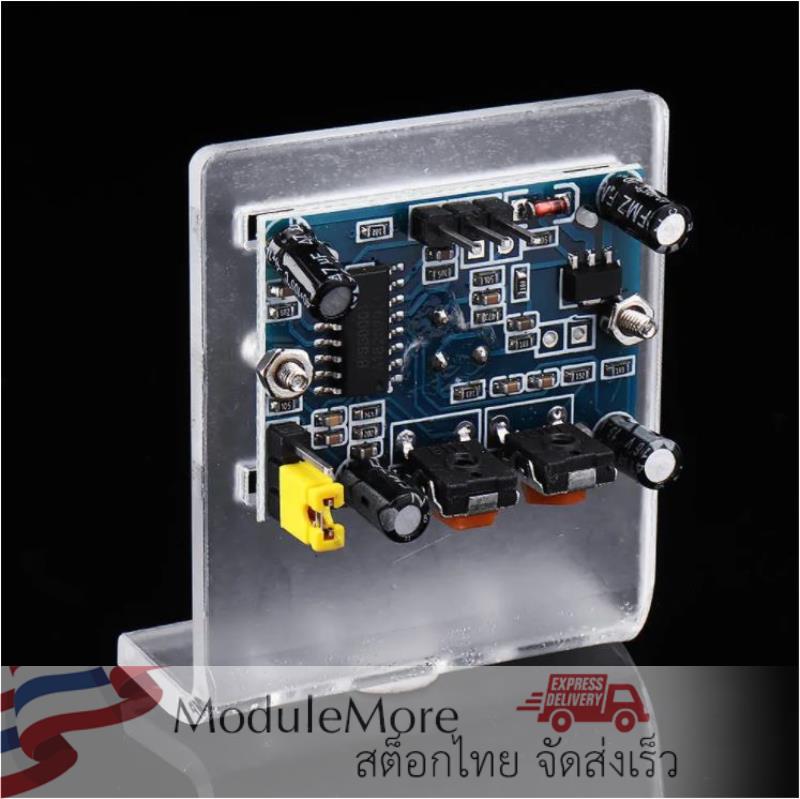

The HC-SR501 PIR Motion Sensor can be inserted from either side of the bracket depending on other mounting considerations.

BEFORE THEY ARE SHIPPED, THESE MODULES ARE:

  • Visually inspected

Notes:

  1. None

TECHNICAL SPECIFICATIONS

Dimensions W x L 40 x 48mm (0.9 x 0.9″)
  Sensor hole W x L 23 x 23mm (0.75″)
Material   Acrylic 3mm thick
